Photograph and Geologic Cross Section
of Quarry at Grafton, Wisconsin

Prototype (experimental) Web Page for WATF Project

This page will be updated often -- Please send comments to Ralph Kugler at: reef@mpm.edu


Jump to 	Diagram of Cross Section A Jump to Diagram of Cross Section A Jump 	to Cross Section B Jump to a Diagram of Stratigraphic Section B Jumps 	to a Diagram of Stratigraphic Section C Jumps to Diagram of Stratigraphic Section C Jumps to 	photograph of reef rock Jumps to photograph of postreef rock Jumps to photograph of interreef rock Jumps to photograph of prereef rock Jump to photograph of interreef rock Jump to photograph of interreef rock Jump to photogrph of interreef rock Jump to photograph of 		interreef rock Jump to photograph of reef rock Jump to photograph of reef rock Jump to photograph of reef rock Jump to photograph of reef rock Jump to 		photograph of prereef rock Jump to photograph 		of prereef rock Jump to photograph of prereef rock Jump to photograph of prereef 		rock Jump to photograph of 		postreef rock

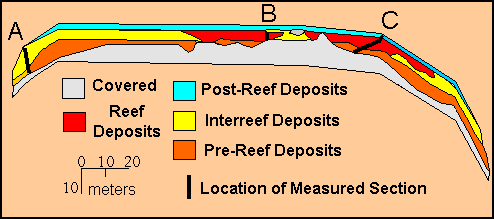

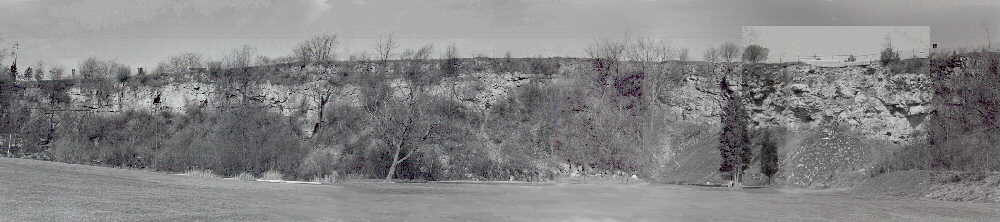

Geologic Cross section of the eastern quarry in Lime Kiln Park. This cross section shows the different types of rocks present in the quarry wall shown in the photograph. Click on the letters A, B and C to view measured sections showing graphic plots and details of rock features. Lower parts of the quarry faces are covered by rock debris, soil, and vegetation. Exposed parts of quarry faces are formed by rock known as dolostone. Four subdivisions of the dolostone represent different sedimentary environments related to development of the reef.
